Keychron K7 Max is an ultra-slim wireless custom mechanical keyboard. It supports 2.4 GHz, Bluetooth, and a wired connection. It allows anyone to master any keys or macro commands on its 65% layout through Keychron Launcher web app. Besides, it has included LSA (low profile spherical-angled) profile keycaps for both Windows and macOS, and users can hot-swap with Gateron low-profile MX mechanical switch in a breeze (for RGB Backlight Hot-Swappable Version only).
Product Specifications:
-
Number of Keys: 68 (65%)
- Switches: Gateron low-profile mechanical
- Switch Face: North-facing
- Number of Multimedia Keys: 12
- Frame Material: ABS+Aluminum frame
- Keycap Material: Low-profile double-shot PBT
- Layout: ANSI
- Polling Rate (2.4GHz and Wired Mode): 1000Hz
- Polling Rate (BT Mode): 90Hz
-
N-Key Rollover (NKRO): Yes for both wireless and wired modes
- QMK/VIA Support
Connectivity and Power Specifications:
-
Backlit: 22 types of RGB backlight options plus endless possibilities
- Battery: 1550 mAh rechargeable li-polymer battery
- Wireless Working Time (Backlit off): Around 73 hours (Lab test result may vary by actual use)
- Wireless Working Time (RGB): Around 42 hours (Lowest brightness)
- Connection: 2.4 GHz / Bluetooth / Type-C wired
- Bluetooth version: 5.1
- Bluetooth Device Name: Keychron K7 Max
- Compatible System: macOS / Windows / Linux
Physical Specifications:
-
Dimension: 306 x 97.5 mm (12.04 x 3.83")
- Weight: 436 g / 0.96 lbs
- Height without keycap (front): 8.8 mm (0.34")
- Height without keycap (rear): 13.2 mm (0.52")
- Height incl. keycap (front): 18.2 mm (0.71")
- Height incl. keycap (rear): 23.2 mm (0.91")
- Typing Angle: 3.37º, 4.4º and 7.39º
- MCU: ARM Cortex-M4 32-bit STM32F402 (256KB Flash)
-
Operating Environment: -10 to 50℃

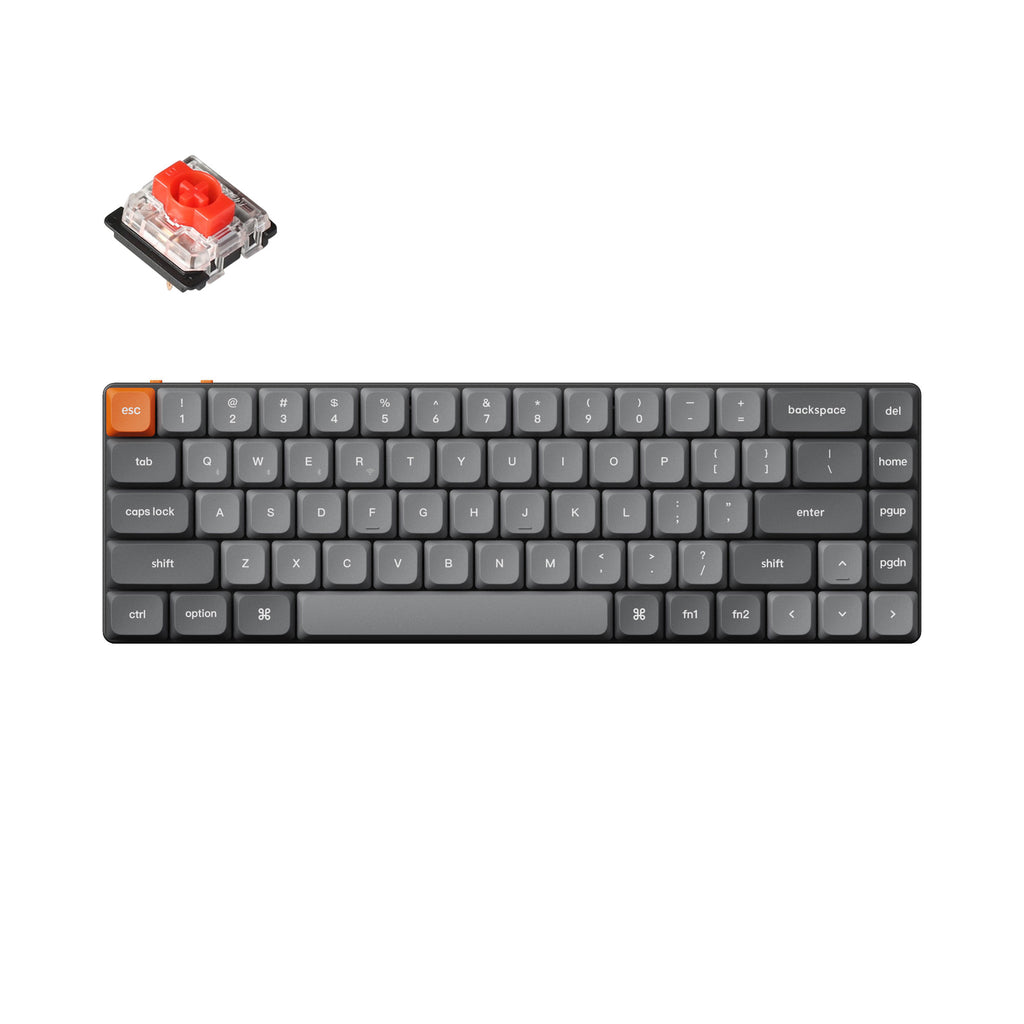

Switch Specifications:
(Table is scrollable)
| Switch Type |
Operating Force |
Pre Travel |
Travel Distance |
Behavior |
Pre-Lubed |
Sound Level |
Suitable For |
| Red |
50g |
1.7mm |
3mm |
Linear |
Yes |
Low |
Office / Gaming |
| Brown |
55g |
1.7mm |
3mm |
Tactile |
Yes |
Medium |
Midway Office / Gaming |
What's Included:
- 1x Fully assembled keyboard (SKU: K7M-H1 / K7M-H3)
- 1x Type-A to Type-C Cable
- 1x Extension adapter for receiver
- 1x Type-A 2.4GHz Receiver
- 1x Switch Puller
- 1x Keycap Puller
The Fine Print:
- Images may depict other variations of the keyboard and are for reference only.
- The K7 Max is currently compatible with Gateron/Keychron low-profile mechanical switches only, as QMK does NOT support low-profile optical switches.
