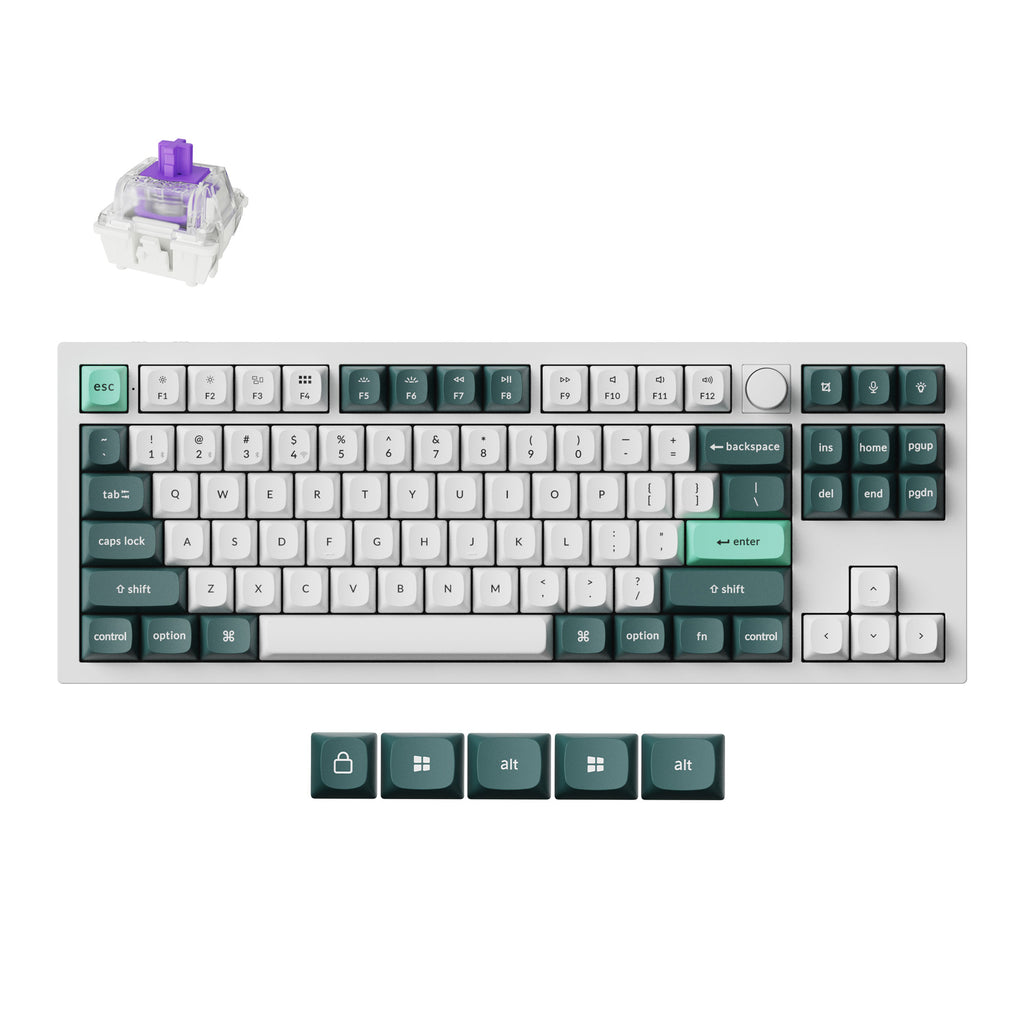

Keychron Q3 HE QMK Custom Keyboard

Introducing the Q3 HE, a wireless QMK custom keyboard with an 80% TKL layout equipped with Hall Effect Gateron 2.0 magnetic switches. These switches provide a distinct advantage due to their unique mechanism, offering faster feedback, dynamic rapid triggering, and adjustable actuation points, resulting in epic enhancements to the gaming experience tailored to your individual preferences.

Product Specifications:

• Width: 137 mm
• Length: 365 mm
• Front Height: 22.6 mm (without keycaps)
• Back Height: 35.8 mm (without keycaps)
• Feet Height: 2.4 mm
• Angle: 5.2°
• Weight: 1775 g ± 10 g (Fully Assembled version)
• Body Material: Aluminum
• Plate Material: Aluminum
• Polling Rate: 1000 Hz (Wired and 2.4 GHz) / 90 Hz (Bluetooth)
• N-Key Rollover (NKRO): Yes for both wireless and wired modes

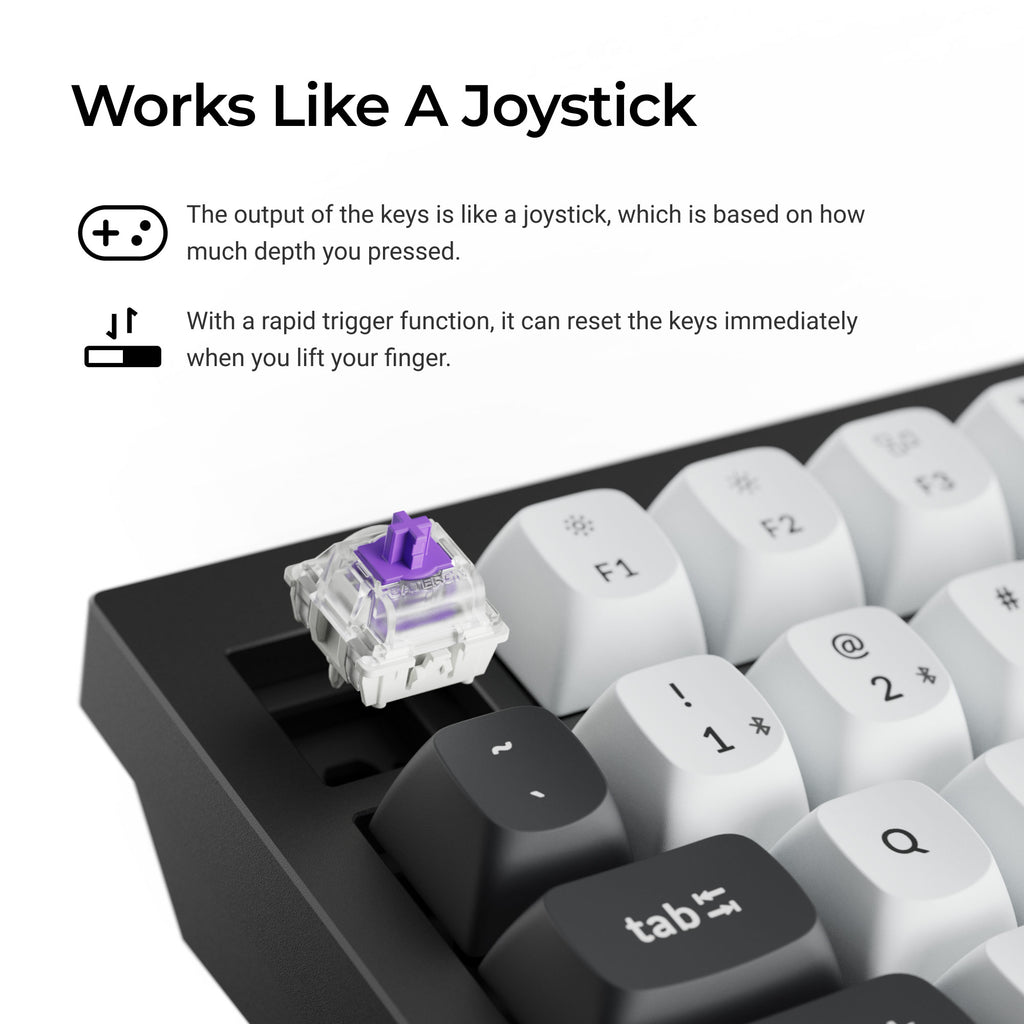

• Rapid Trigger: Yes
• Adjustable Actuation Points: 0.2 – 3.8 mm
• Dynamic Keystrokes: 4-in-1 action keys
• Sensitivity: 0.1 mm
• N-Key Rollover (NKRO): Yes for both wireless and wired modes

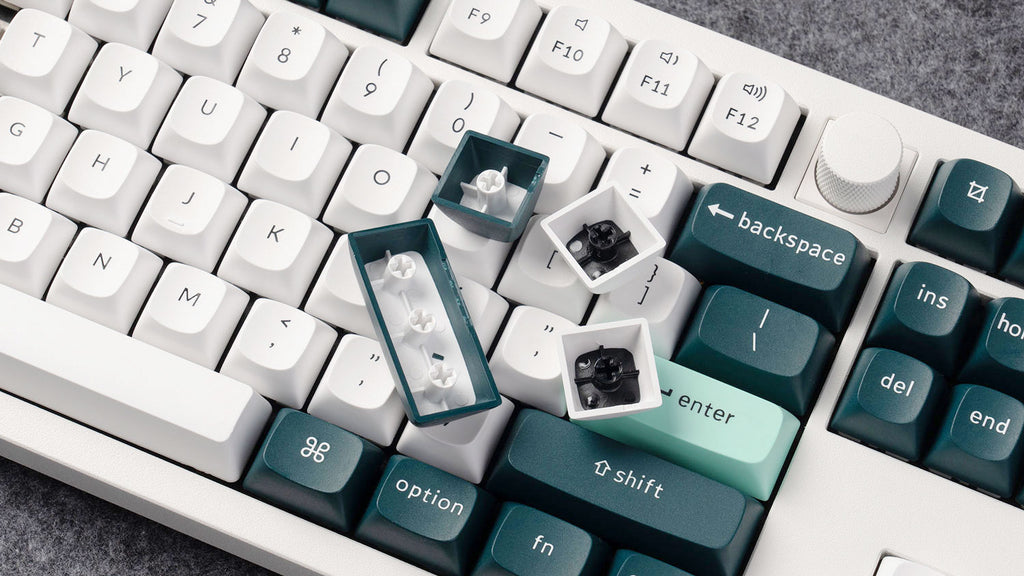

• Keycap: OSA Double-shot keycaps, not shine-through
• MCU: ARM Cortex-M4 32-bit STM32F402RC (256KB Flash)
• Backlight: 22 types of RGB backlight options plus South-facing RGB LED

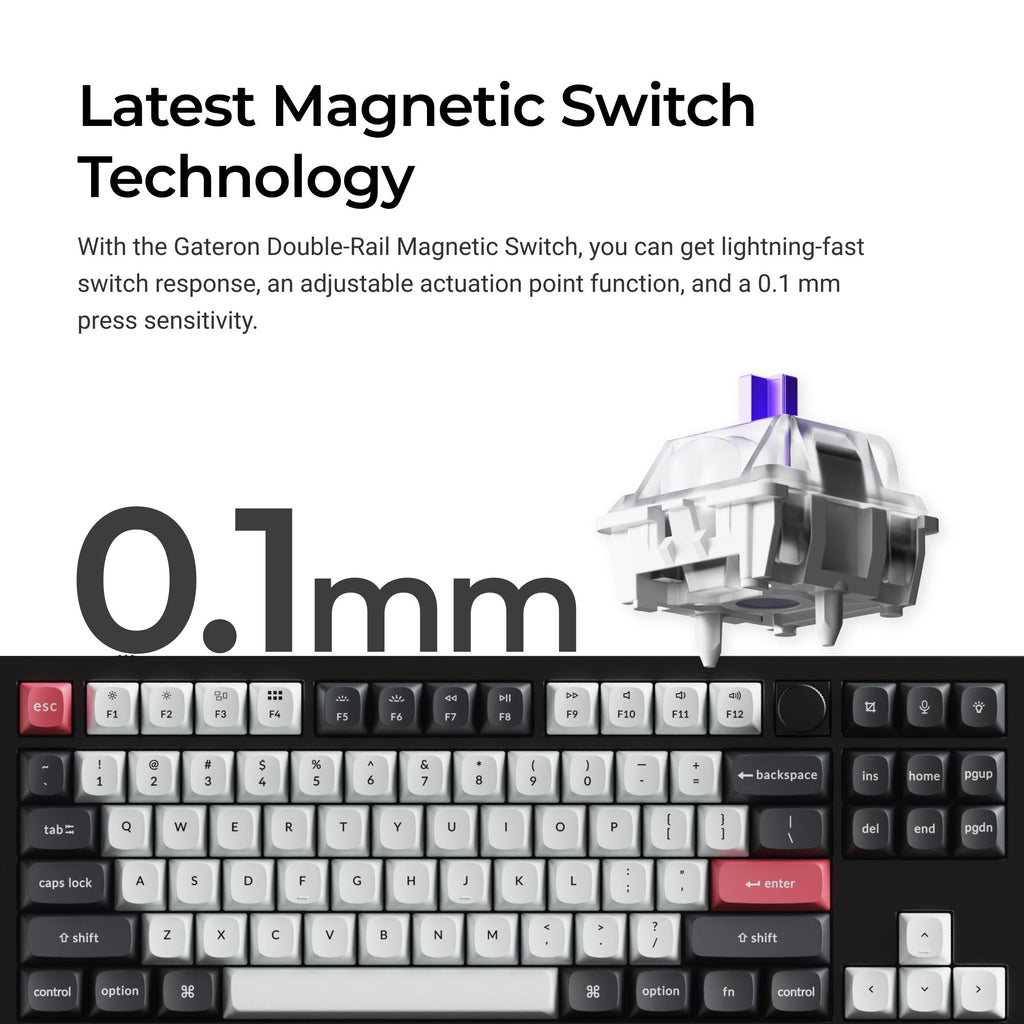

• Switch: Gateron double-rail magnetic switch

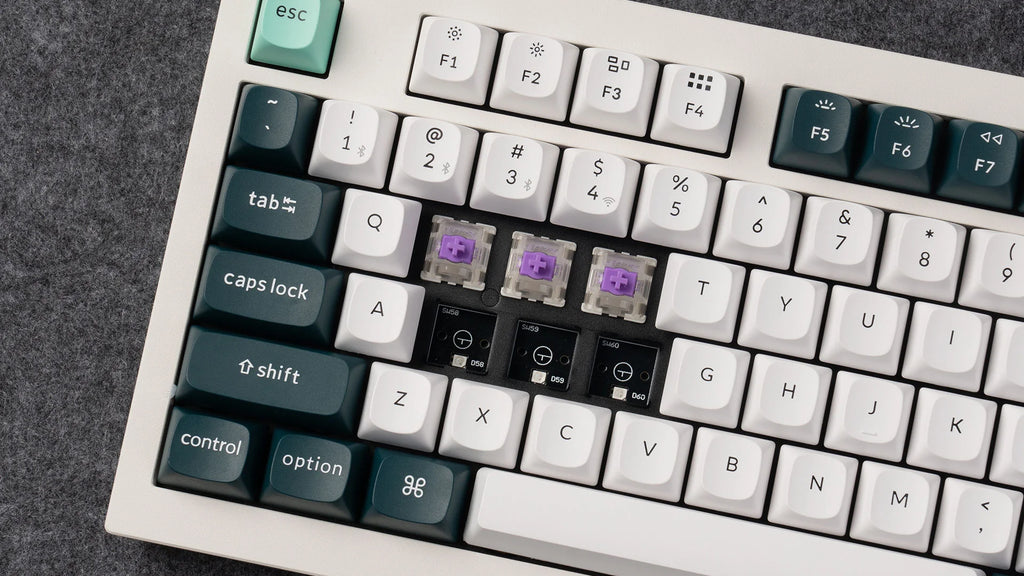

• Hot-swappable Support: Yes, compatible with Gateron double-rail magnetic switch only
• Stabilizer: Screw-in PCB stabilizer
• Cable: Type-C cable (1.8 m) + Type-A to Type-C adapter

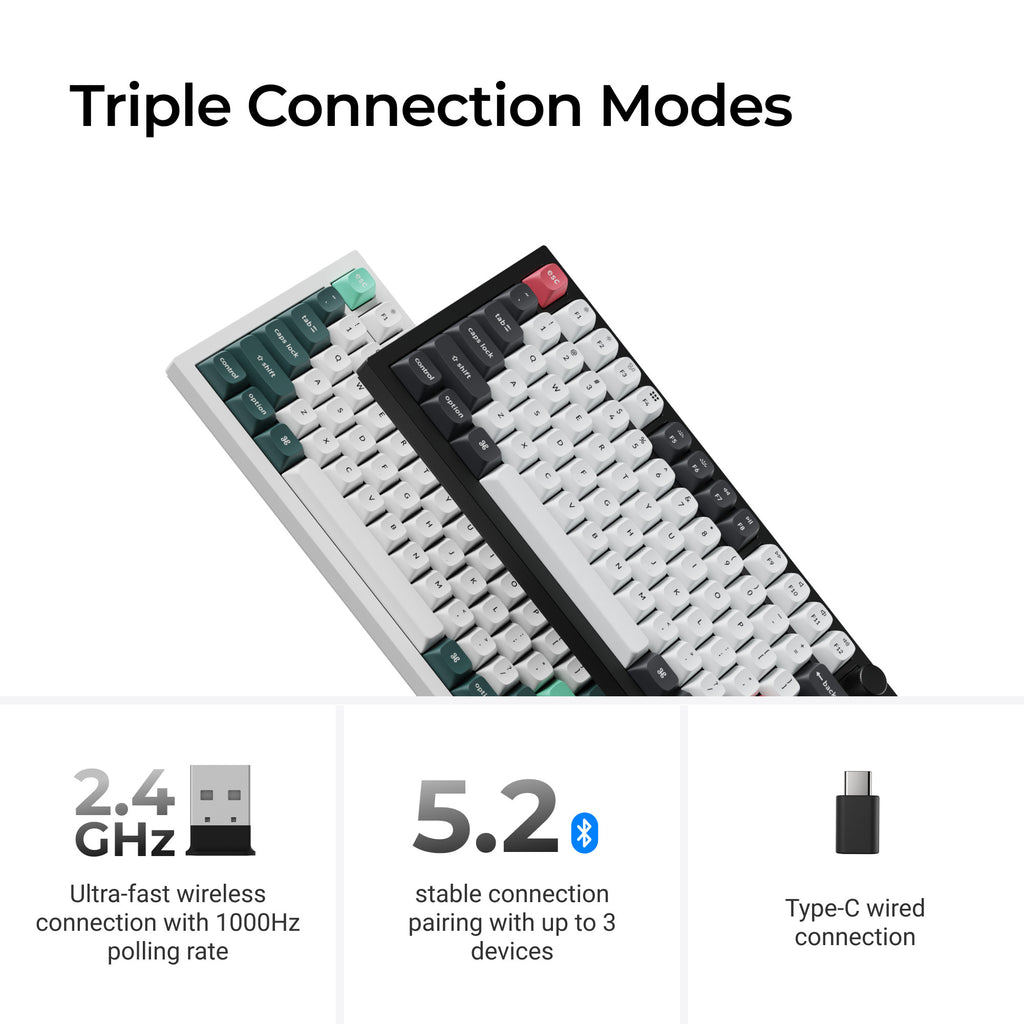

• Connectivity: 2.4 GHz / Bluetooth / Type-C wired
• Bluetooth Version: 5.2
• Bluetooth Device Name: Keychron Q3 HE
• Battery: 4000 mAh Rechargeable li-polymer battery
• Operating Environment: -10 to 50 ℃
• Wireless Working Time (Backlit off): Up to 100 hours

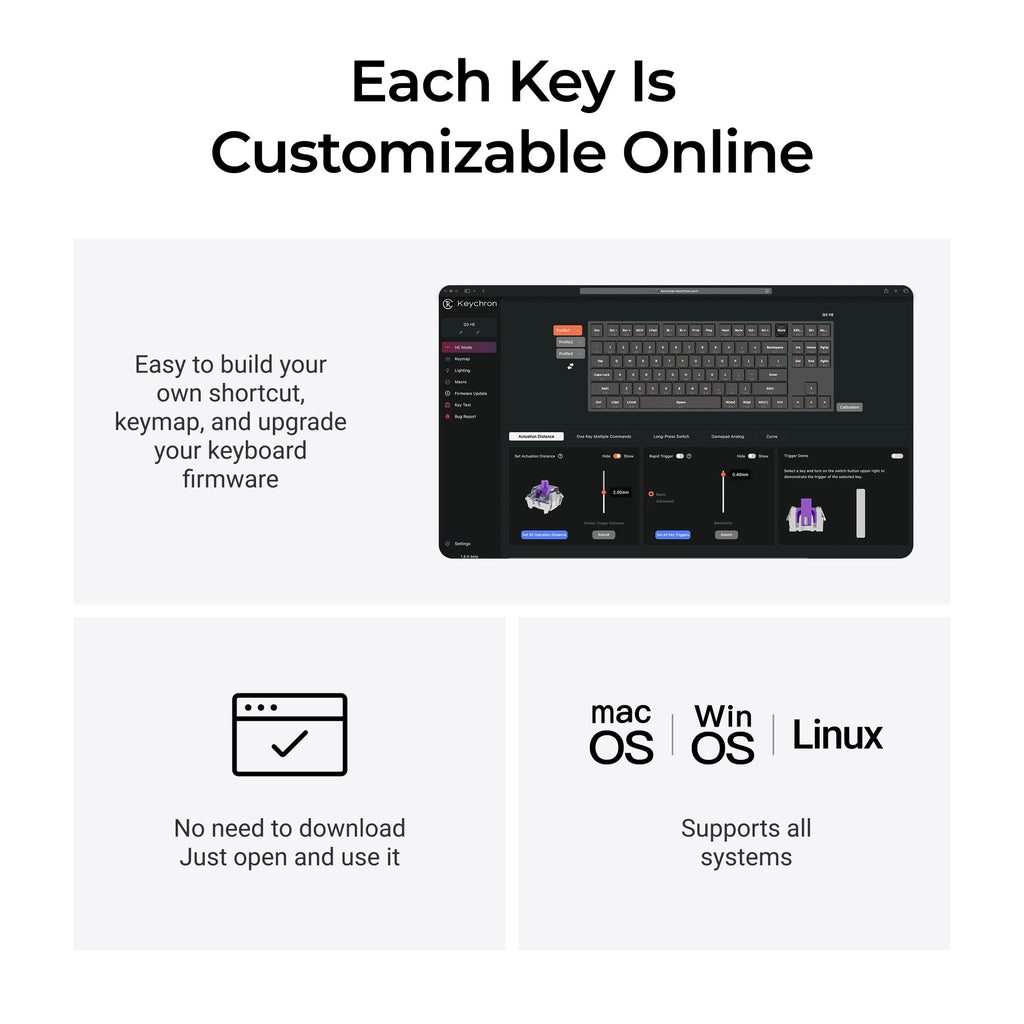

• VIA Support

Switch Specifications:

(Table is scrollable)

What's Included:

• 1× Fully Assembled Keyboard Including:
• 1× Aluminum Case
• 1× PCB
• 1× Aluminum Plate
• 1× Sound Absorbing Foam
• 1× Latex Bottom Pad
• 1× Bottom Case Acoustic Foam
• 1× Bottom Case PET Film
• 16× Gaskets
• 5 sets × Stabilizers
• 1 set × Keycaps (PBT Double-shot)
• 1 set × Switches (Gateron Double-Rail Magnetic)
• 1× Type-C Cable
• 1× Type-A to Type-C Adapter
• 1× Extension Adapter for Receiver
• 1× Type-A 2.4 GHz Receiver
• 1× Keycap & Switch Puller
• 1× Screwdriver
• 1× Hex Key
