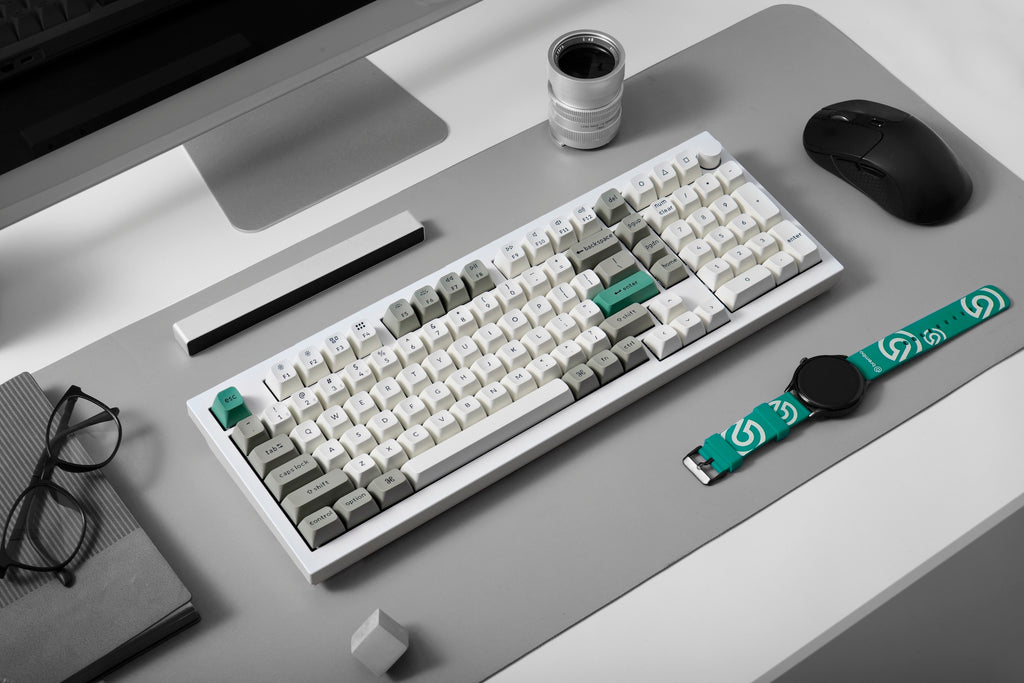

Meet the Keychron Q5 Max, a full metal QMK wireless custom mechanical keyboard upgraded with a 2.4 GHz wireless connection, featuring a 1000 Hz polling rate. Elevating the typing experience further, it has been thoughtfully upgraded with multiple layers of acoustic foams, ensuring a premium sound quality with every keystroke.
Paired with many other premium features, such as the double-gasket design, PBT keycaps, screw-in stabilizers, and more, the Keychron Q5 Max promises an unparalleled typing journey that transcends expectations.
To further fine-tune your typing experience, we designed our unique Keychron spherical-angle (KSA profile) double-shot keycap set with premium non-backlight shine through PBT material, that is oil-resistant and durable for long-term use.
Product Specifications:
- Width: 145 mm
- Length: 408 mm
- Front Height: 22.6 mm (without keycaps)
- Back Height: 35.8 mm (without keycaps)
- Feet Height: 2.4 mm
- Angle: 5.2°
- Weight: 2215 g ± 10 g (Fully Assembled version)
- Body Material: Aluminum
- Plate Material: PC
- Keycap: KSA double-shot PBT keycaps, not shine-through (Fully Assembled version) / OSA side-printed double-shot PBT keycaps (Fully Assembled version)
- Switch: Gateron Jupiter (Fully Assembled version)
- Stabilizer: Screw-in PCB stabilizer
- Backlight: South-facing RGB LED
- Hot-swappable: Yes, compatible with most 3-pin and 5-pin MX mechanical switches such as Gateron, Cherry MX, and Kailh
- MCU: ARM Cortex-M4 32-bit STM32F402 (256KB Flash)
- Polling Rate: 1000 Hz (2.4 GHz & wired) / 90 Hz (Bluetooth)
- N-Key Rollover (NKRO): Yes for both wireless and wired modes
- Battery: 4000 mAh Rechargeable li-polymer battery
- Wireless Working Time (Backlit off): Up to 180 hours (Lab test result may vary by actual use)
- Wireless Working Time (RGB): Up to 100 hours (Lowest brightness)
- Bluetooth Version: 5.1
- Compatible System: macOS / Windows / Linux
- Connectivity: 2.4 GHz / Bluetooth / Type-C wired
- Bluetooth Device Name: Keychron Q5 Max
- Operating Environment: -10 to 50℃
- QMK/VIA Support
Switch Specifications:
Our exclusive Gateron Jupiter mechanical switch comes with a 3-pin design, its pre-lubed with a reliable Gateron quality standard with up to 80 million keystrokes lifespan. While their unique LED diffuser design offers high RGB backlight transmittance and softer backlight effect.
(Table is scrollable)
| Switch Type |
Start Force |
Pre Travel |
Total Travel |
Behavior |
Pre-Lubed |
Sound Level |
Suitable For |
| Jupiter Red |
45g |
2mm |
4mm |
Linear |
Yes |
Quiet |
Office / Gaming |
What's Included:
- 1x Fully Assembled Keyboard Including (SKU Q5M-M1 / Q5M-P1):
- 1x Aluminum Case
- 1x PCB
- 1x PC Plate
- 1x Sound Absorbing Foam
- 1x IXPE Foam
- 1x PET Foam
- 1x Latex Bottom Pad
- 1x Bottom Case Acoustic Foam
- 1x Bottom Case PET Foam
- 14x Gaskets (12 Installed and 2 in the Box)
- 7 sets x Stabilizers
- 1 set x Keycaps (PBT Double-shot)
- 1 set x Switches
- 1x Type-C to Type-C Cable
- 1x Type-A to Type-C Adapter
- 1x Extension Adapter for Receiver
- 1x Type-A 2.4 GHz Receiver
- 1x Keycap & Switch Puller
- 1x Screwdriver
- 1x Hex Key
The Fine Print:
- Images may depict other variations of the keyboard and are for reference only.
